Startseite /Produkte/Digitale UV-Druckmaschine/Crystal Machine YC2030H Hotels Inkjet Printers Digital Embossing UV Printer

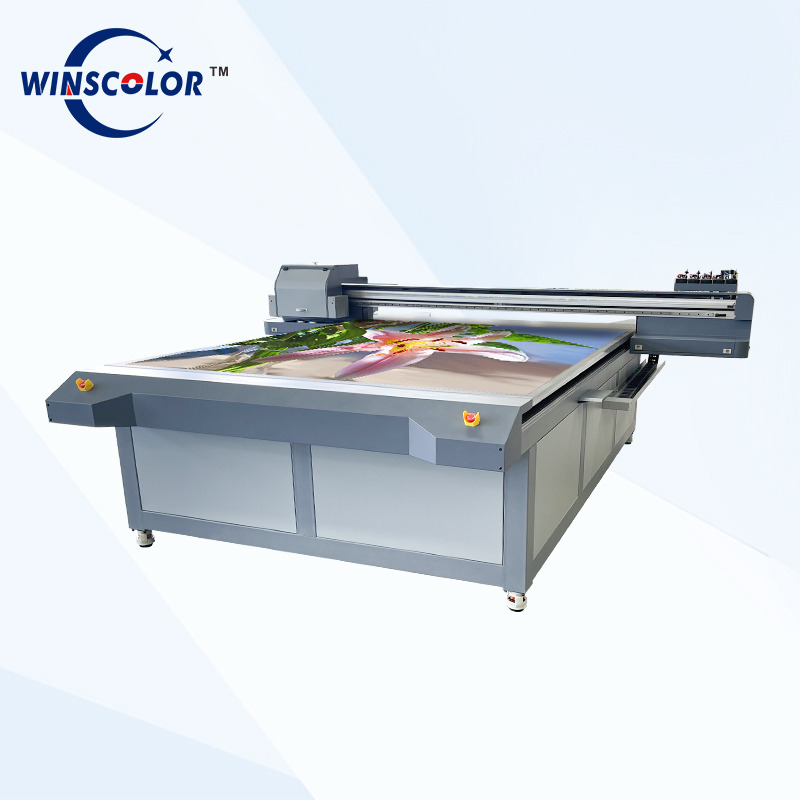

Crystal Machine YC2030H Hotels Inkjet Printers Digital Embossing UV Printer

1 Set
MOQ
$25,000.00(1 - 1 Sets) $18,000.00(2 - 9 Sets) $13,000.00(>=10 Sets)
Preis
Crystal Machine YC2030H Hotels Inkjet Printers Digital Embossing UV Printer
Eigenschaften Galerie Produkt-Beschreibung Fordern Sie ein Zitat
Eigenschaften
Technische Daten
Condition: New
Dimensions(L*W*H): 3.7*3.35*1.3m
Plate Type: Flatbed Printer
Weight: 1000 KG
Automatic Grade: Automatic
Color & Page: Multicolor
Usage: Card Printer, Tube Printer, Label Printer, Glass/wood/plastic/PVC/metal ect.
Voltage: 220V
Applicable Industries: Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Bevera
Warranty: 1 Year, 1 year
Print Dimension: 2000*3000mm
Ink Type: UV ink
Key Selling Points: High Productivity
Marketing Type: New Product 2021
Machinery Test Report: Provided
Video outgoing-inspection: Provided
Warranty of core components: 1 Year
Core Components: Motor, Board
Product name: YC2030H
Printing Material: Glass/wood/metal/PVC/plastic ect
Color: CYMK LC LM W V
Printing size: 2000*3000mm
Max Printing size: 100mm,higher can be customized
Printing technology: Drop-on demand piezo eletric
Printing Table: Aluminium alloy
UV Curing: UV LED curing
Operating Environment: Temperature 20°-30°,Humidity 40%-60%
Grundinformation
Zahlung und Versand AGB
Packaging Details: Standard wooden case packaging
Supply Ability: 300 Set/Sets per Month
Produkt-Beschreibung
Product Description

Inkjet Machine Printer Crystal YC2030H Digital Embossing UV Printer
Printhead
RICOH GEN5/GH2220/TOSHIBA
CE4 Printhead 2-8 units
Image Quality
Bright picture,
fresh as before.
Application
Wide range of applications to
meet a variety of needs.
Product Paramenters

YC2030H UV Flatbed Printer

①UV LED Lamp
②Industrial Printhead
③TAIWAN HIWIN guide rail
④Universal Wheel
⑤Emergency Stop
Product Model
YC2030H
Printhead Type
RICOH GH2220/TOSHIBA CE4 Optional
Printhead Number
2-8 heads
Ink Characteristics
UV Curing Ink (VOA Free)
Ink reservoirs
Refillable on the fly while printing/1000ml per color
LED UV Lamp
more than 30000-hours life
Printhead arrangement
CMYKW V Optional
Printhead Cleaning System
Automatic Cleaning System
Guide Rail
Taiwan HIWIN
Working Table
Vacuum Sucking
Printing Size
2000*3000mm
Print Interface
USB2.0/USB3.0/Ethernet Interface
Media Thickness
0-100mm
Print Resolution& Speed
720X600dpi
4PASS
4-16sqm/h
720X900dpi
6PASS
3-11sqm/h
720X1200dpi
8PASS
2-8sqm/h
Life of printed image
3 years(outdoor),10years(indoor)
File Format
TIFF,JPEG,Postscript,EPS,PDF etc.
RIP Software
Photoprint/RIP
Power Supply
220V 50/60Hz(10%)
Power
3100W
Operation Environment
Temperature 20 to 30 ℃,Humidity 40% to 60%
Machine Dimension
3.7*3.35*1.3m
Packing Dimension
3.65*0.7*0.78m 3.9*2.25*1.18m
Weight
1000kg
Warranty
12 months exclude the consumables
Above specification subject to change without notice beforehand
Machine Details



Ricoh Print Head
Adopting gray level Ricoh stainless steel internal heating industry head which has high performance in speed and resoluti-
on.It is suitable for long-time working, 24 hours running.




Vacuum Suction
The vaccum suction platform is easy to operate and save energy,good for vario-us sizes of personailzed printing; With full cover for bleeding printing, it will im-prove the utilization of materials.




High Precision Mute Linear Guide Rail
Use high precision mute liner guide rail, long service life, high stability,immensely decrease noise while printer is printing,
within 40DB while printing.





Leadshine Servo Motor
Leadshine servo motor and BEIDI belts
ensure mechanical precision, long dura- tion and environmentally friendly.
Aluminum Beam
Korea UV LED Lamp
Universal Wheel
Printing Samples
Adopt Ricoh piezoelectric nozzle, one nozzle 384/1280 nozzles, the accuracy can reach 1440 dpi, the new variable ink drop technology, provide 7/14/21pl ink dot size, can achieve high speed or low resolution cases can also easily achieve high quality picture, to achieve no point printing effect.
CMYK+W+V All three colors at once
The use of gloss oil makes the product more gorgeous gloss and "high gloss" effect, not only makes the surface of the whole picture has a gloss sense, get a more exquisite printing effect, but also can better protect the coating, make the product more durable.
Plastic
Mouse Pad
Wood
Glass
Decoration
Acrylic
Car Sticker
Handcraft
Ceramic
Company Profile

Jinan Yingcai Digital Technology Co., Ltd

Jinan Winscolor Digital Technology Co., Ltd. ("Winscolor" for short) was established in 2015, located in Jinan City, Shandong Province, China. The independent workshop is more than 20,000 square meters and has 6 professional production lines.
Winscolor is an exporter of UV digital printers. Now our printer series include UV flatbed printers, roll to roll printers, UV hybrid printers, and smart UV printers.
Winscolor digital printers have been exported since 2015 and have been widely praised and recognized by customers. Our printers are exported to more than 150 countries in Asia, Europe, Australia, and Africa.
Winscolor UV printers have been widely used in industries such as advertising, signage, decoration, glass, and handicrafts. We strengthen technological innovation, optimize costs, and strive to create the best quality UV digital printers for customers, and provide comprehensive solutions for the different needs of various industries.
Winscolor adheres to the concept of excellence, continuously improves product quality, and becomes the most trusted brand in the UV printing equipment industry. We will continue to devote ourselves to
the R&D and innovation of industrial printing and promote the healthy development of the printing industry.
Packing & Delivery
Customer Photos
FAQ
1. How long does the printing images will last outdoors and indoor? The printing images can last at least 3 years outdoors, and more than 10 years indoor.

2. What is the cost of ink for printing on the materials?
Normally it is around 0.5-1 usd per square meter for ink cost.

3. How about the stability and quality of the printing images?
This UV flatbed printer can used to print on most of medias with best quality, durability, best result.

4. How about the maintance and after sales service?
Our engineer available service overseas, and we can provide remote control service and online service for customers. But customer has to be responsible for the accommodation and transportation costs of the technical staff.

5. Are you a manufacturer or trade agent?
We are the manufacturer of UV flatbed printers.

6. Is there any guarantee for this printer?
Yes, we have guarantee for the printer. We provide 13 months warranty for all the electronic parts including the main board,driver board, control board, motor, etc, except the caonsumables, such as ink pump,print head, ink filter, and slide block etc.

7. How can I install and start to use the printer?
Normally we will arrange technican for installation and training in your factory. or you can read the users' manual to understand the machine. If you need any help, our technician can help you via Team viewer. Whenever you have questions to the machine, you can contact our technician or me directly.

8. Can I get supplies and wearing parts from you?
Yes, we provide all the wearing parts for our printers always and they are in stock.

9. How will you achieve the warranty? If any electronics or a mechanical part is confirmed to be broken, should send the new part within 48 hours by express like TNT, DHL, FEDEX .etc to the buyer. And the shipping cost should be born by the buyer.

10. What kinds of materials need premier before printing?
Glass, ceramic, metel, acrylic, marble etc
